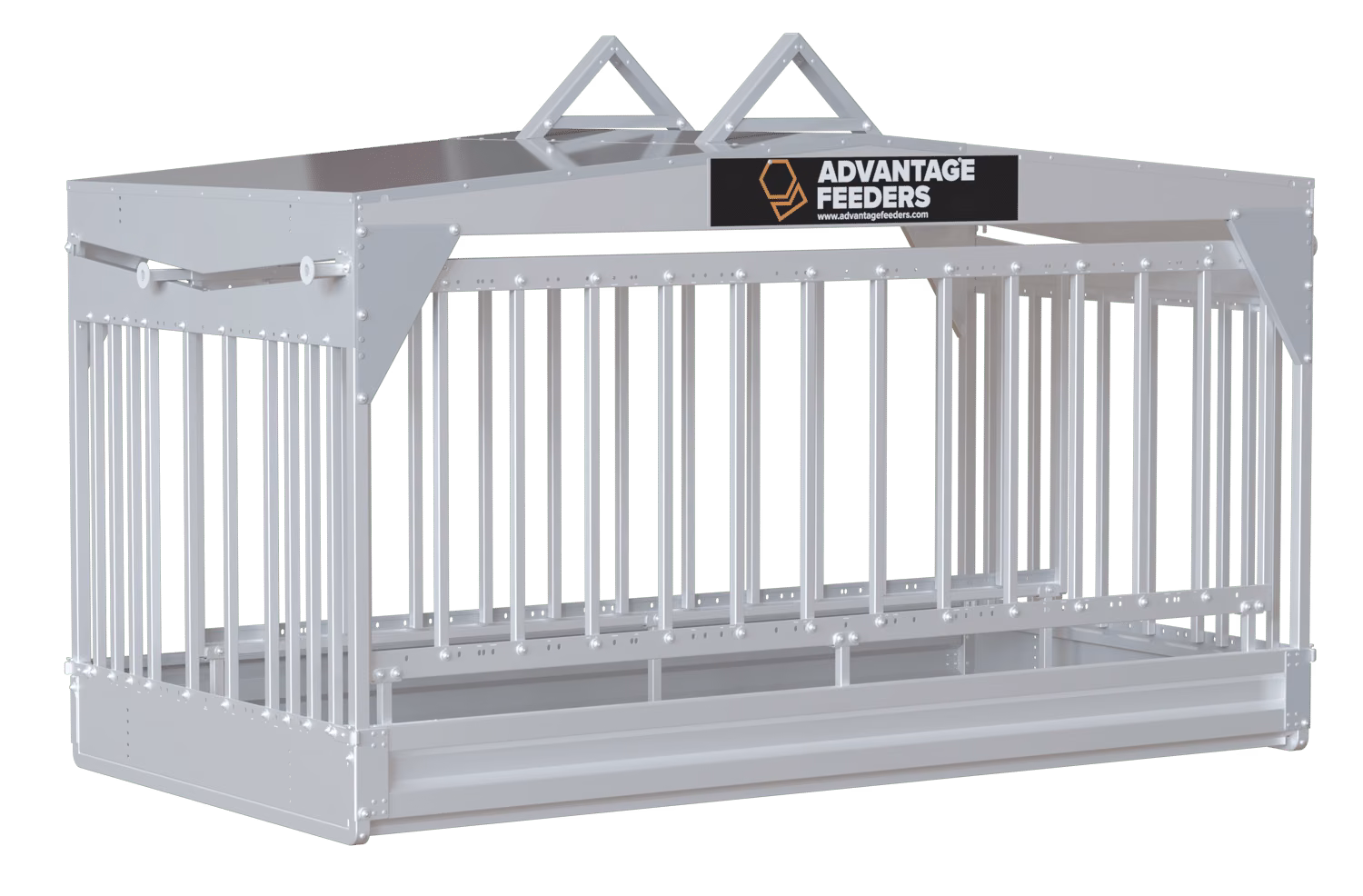

Sliding Gates Hay Feeder (Flat Packed)

From: $1,995.00
+ GST

The Sliding Gates Hay Feeder from Advantage Feeders is a heavy-duty, versatile feeder designed to provide secure, controlled access to hay for a wide range of livestock.

Unlike other feeders that are tailored to specific stock, this feeder is the perfect solution for mixed livestock operations, accommodating sheep, goats, cattle, and deer with ease. Its sliding gates allow simple access to bales while keeping hay contained, and the robust hot-dip galvanised SHS construction ensures durability and long-lasting performance in demanding farm conditions.

Adjustable bar widths make it suitable for different bale sizes and stock types, while thoughtful safety and maintenance features make daily use hassle-free. Backed by a 2 year warranty, it offers a practical, efficient solution for feeding hay while protecting stock and reducing waste.

An additional bar kit is available to reduce the bar width for small animals. The internal length is 8.7ft for overlength bales.

This product comes with a 2 Year Warranty.

$1,995.00
+ GST
Product Assembly Options:
  • Bale capacity: 1x 8’x4’x4′ square bale / 1x 4’×5′ round bale / 2x 4’×4′ round bale
  • Ewes or lambs (paddock): 200 – 250
  • Ewes or lambs (feedlot): 120 – 150
  • Cattle or calves (paddock): 40 – 50
  • Cattle (feedlot): 30 – 35
  • Deer (paddock): 120 – 150
  • Goats (paddock): 200 – 250
  • Weight: 518 lb
  • Assembled Dimensions (L×W×H): 8′ 11.7″ × 4′ 8.3″ × 5′ 8.1″
  • Flat-Pack Dimensions (L×W×H): 8′ 9.1″ × 3′ 9.7″ × 10.0″
  • Gap Between Bars: Adjustable between 7.1 – 15.7″
  • Bull Bar Kit: Includes 26 gate bars and 14 end bars
  • Bale capacity: 1x 8’x4’x4′ square bale / 1x 4’×5′ round bale / 2x 4’×4′ round bale
  • Notes: Additional bar kit available to reduce bar width for small animals. Internal length is 8.4ft for overlength bales.

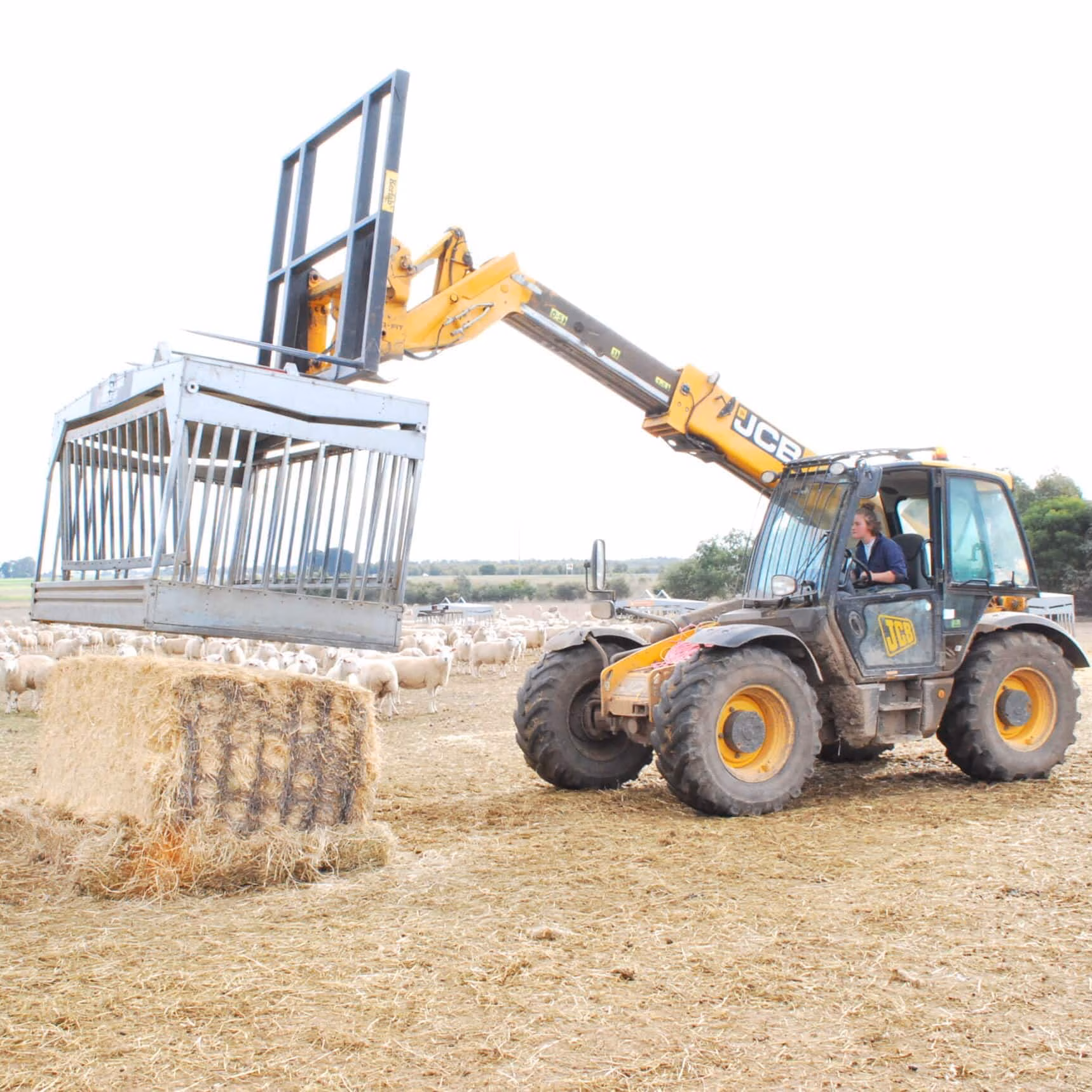

This unit features two sliding gates with removable containment sheets and latches to hold the gates open during loading. It comes with a standard roof and adjustable bar width from 7.1–15.7 inches, with a designated housing location when not all bars are in use. An optional bar kit is available to reduce bar width for smaller stock. A lifting hook allows for easy shifting and loading, and the construction uses durable Z275 sheet metal. It comes with a 2 year warranty and a 30-day money-back guarantee, and is available flat-packed or fully assembled.

Accessories
Mineral attachments, rubber mats, creep panels and gates to extend your feeder as your operation’s needs change.

Bull Kits for the Tray Hay Feeder reduce bar gaps from 12 in to 5.5 in, safeguarding bulls and minimising the risk of head entrapment.
